GC2053

GC2053

CMOS sensor model：GC2053

CMOS sensor Size：1/2.9 inch

Output full resolution：1920*1080

Pixel size：2.8um*2.8um

TV Distortion：<1%

IR Specification：650+_10nm


Product Details
CMOS sensor modelGC2053
CMOS sensor Size1/2.9 inch
Output full resolution1920*1080
Pixel size2.8um*2.8um
TV Distortion<1%
IR Specification650+_10nm
Field of ViewDiagnal=89 degree ,Horizontal=80 degree,Vertical=55 degree
Output port typeUSB2.0
Effective full resolution&frame MJPG 1920*1080 30fps;   YUY2 1920*1080 5fps;
Normal resolution&frameMJPG 1280*720/30fps;YUY2 1280*720/10fps;MJPG 800*600/30fps;MJPG 640*480/30fps;YUY2 640*480/20fps
Power consumptionP=0.6W 5V*120mA
Operation temerature0℃~50℃
Storage temerature -40℃~85℃
supporting platformLinux,windows,Android
ApplicationElectronic scale,Face identification,Object identification
DriverNo need
ESD levelUSB2.0 port contact discharge 4KV,Not-contact discharge15KV

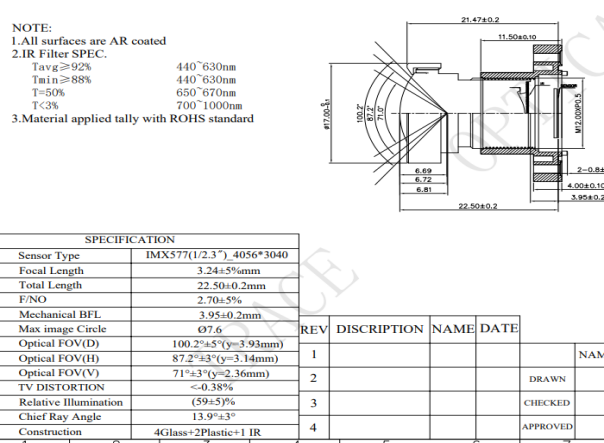

Dimension，2D drawing38X38mm,detail dimension as 2D drawing
ROHSComplicate
