OV2735

OV2735

CMOS sensor model：OV2735

CMOS sensor Size：1/2.7 inch

Output full resolution：1920*1080

Pixel size：3um*3um

TV Distortion Lens 1<3.9%;Lens 2<1%

IR Specification：650+_10nm


Product Details
CMOS sensor modelOV2735
CMOS sensor Size1/2.7 inch
Output full resolution1920*1080
Pixel size3um*3um
TV DistortionLens 1<3.9%;Lens 2<1%
IR Specification650+_10nm
Field of ViewLens 1:Diagnal=96 degree ,Horizontal=87 degree,Vertical=56 degree
Lens 2：Diagnal=121 degree ,Horizontal=112 degree,Vertical=76 degree
Output port typeUSB2.0
Effective full resolution&frame MJPG 1920*1080 30fps;   YUY2 1920*1080 5fps;
Normal resolution&frameMJPG 1280*720/30fps;YUY2 1280*720/10fps;MJPG 800*600/30fps;YUY2 800*600/20fpsMJPG /YUY2 640*480/30fps
Power consumptionP=0.75W 5V*150mA
Operation temerature0℃~50℃
Storage temerature -40℃~85℃
supporting platformLinux,windows,Android
ApplicationElectronic scale,Face identification,Object identification
DriverNo need
ESD levelUSB2.0 port contact discharge 4KV,Not-contact discharge15KV

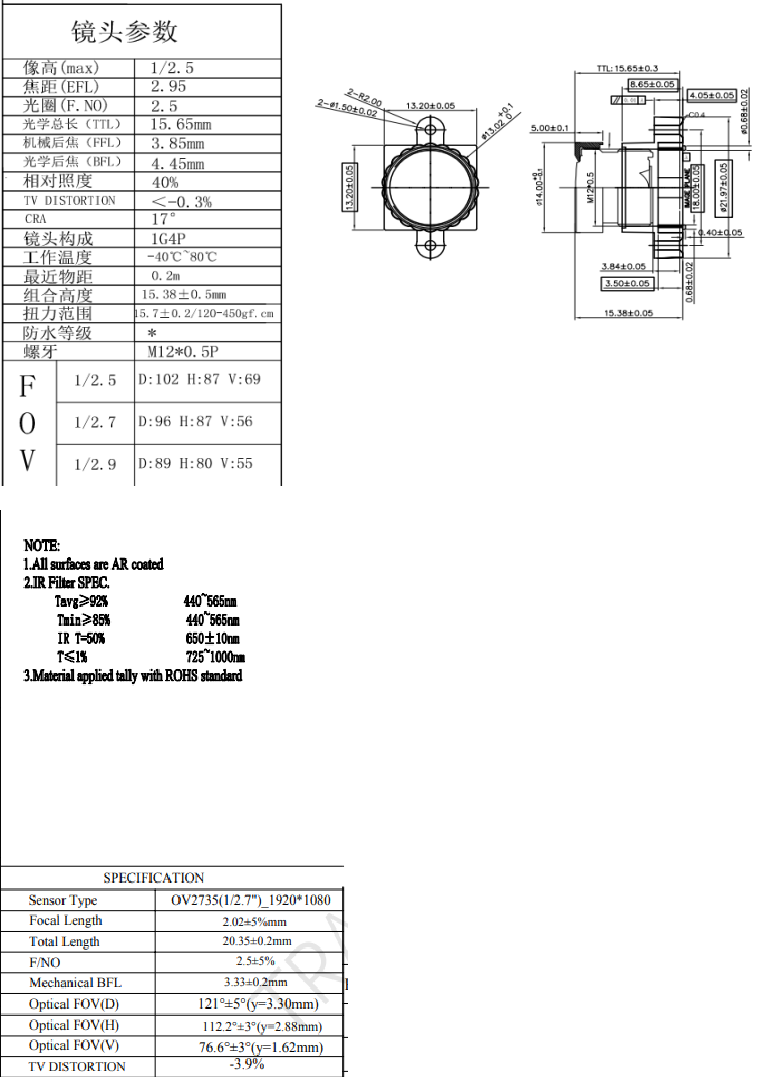

Dimension，2D drawing38X38mm,detail dimension as 2D drawing
ROHSComplicate
