Professional camera manufacturing from China.
CMOS sensor model：IMX335
CMOS sensor Size：1/2.8 inch
Output full resolution：2592*1944
Pixel size：2um*2um
TV Distortion：<1%
IR Specification：650+_10nm
Field of View：Diagnal=73 degree ,Horizontal=65 degree,Vertical=40 degree
Output port type：USB2.0
| CMOS sensor model | IMX335 |
| CMOS sensor Size | 1/2.8 inch |
| Output full resolution | 2592*1944 |
| Pixel size | 2um*2um |
| TV Distortion | <1% |
| IR Specification | 650+_10nm |
| Field of View | Diagnal=73 degree ,Horizontal=65 degree,Vertical=40 degree |
| Output port type | USB2.0 |
| Effective full resolution&frame | MJPG 2592*1944 30fps; YUY2 2592*1944 2fps; |
| Normal resolution&frame | MJPG 2048*1536/30fps;YUY2 2048*1536/3fps;MJPG 1920*1080/30fps;YUY2 1920*1080/3fps;MJPG 1280*720/30fps,YUY2 1280*720/8fps;MJPG 800*600/30fps;YUY2 800*600/20fps;MJPG/YUY2 640*480/30fps; |
| Power consumption | P=0.95W 5V*190mA |
| Operation temerature | 0℃~60℃ |
| Storage temerature | -40℃~85℃ |
| supporting platform | Linux,windows,Android |
| Application | Video, identification |
| Driver | No need |
| ESD level | USB2.0 port contact discharge 4KV,Not-contact discharge15KV |

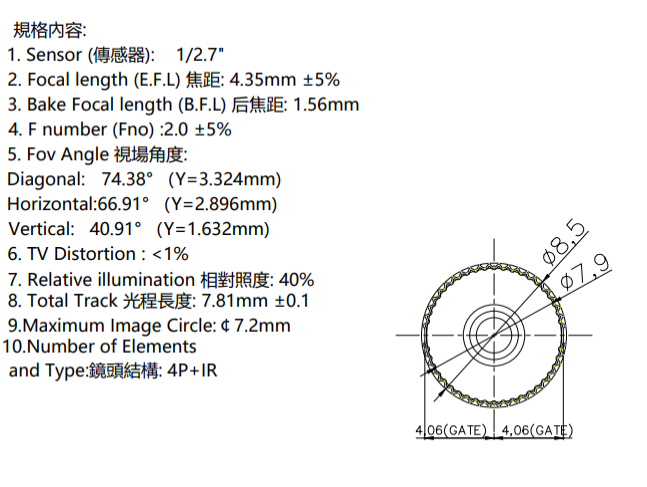

| Dimension，2D drawing | 50X22mm,detail dimension as 2D drawing |
| ROHS | Complicate |
| Motor specification | VCM |
