IMX415

IMX415

CMOS sensor model:IMX415

CMOS sensor Size: 1/2.8 inch

Output full resolution:3840*2160

Pixel size: 1.45um*1.45um

TV Distortion: <3%

IR Specification:650+_10nm


Product Details
CMOS sensor modelIMX415
CMOS sensor Size1/2.8 inch
Output full resolution3840*2160
Pixel size1.45um*1.45um
TV Distortion<3%
IR Specification650+_10nm
Field of ViewDiagnal:88.2 degree ,Horizontal:80.2 degree,Vertical:51 degree
Output port typeUSB2.0
Effective full resolution&frame MJPG 3840*2160 30fps;  YUY2 3840*2160 1fps
Normal resolution&frameMJPG 3840*2160/30fps;2592*1944/30fps;2048*1536/30fps;1920*1080 30fps;1280*960 30fps;1280*720/30fps；YUY2 3840*2160/1fps;2592*1944/1fps;2048*1536/3fps;1920*1080/5fps;1280*960/5fps;1280*720 10fps; Full resolution
Power consumptionP=1.7W 5V*340mA
Operation temerature0℃~60℃
Storage temerature -40℃~85℃
supporting platformLinux,windows,Android
ApplicationLive streaming,others
DriverNo need
ESD levelUSB2.0 contact discharge 4KV,Not-contact discharge15KV

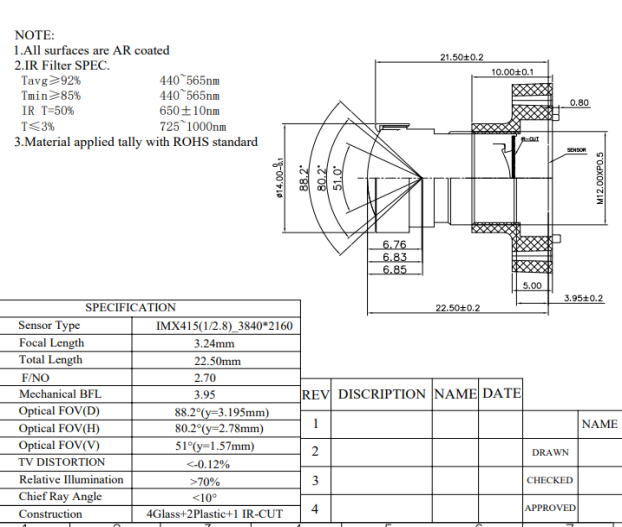

Dimension，2D drawing38*38mm 2 layers,detail dimension as 2D drawing
ROHSComplicate
