AR0521

CMOS sensor model：AR0521

CMOS sensor Size：1/2.5 Inch

Output full resolution：2592*1944

Pixel size：2.2um*2.2um （BSI）

TV Distortion：<5%

IR Specification：650+_10nm

Product Details

CMOS sensor model	AR0521
CMOS sensor Size	1/2.5 Inch
Output full resolution	2592*1944
Pixel size	2.2um*2.2um （BSI）
TV Distortion	<5%
IR Specification	650+_10nm
Field of View	Diagnal:80 degree ,Horizontal:69 degree,Vertical:54 degree
Output port type	USB2.0
Effective full resolution&frame	MJPG 25921944 30fps; YUY2 25921944 2.5fps;
Normal resolution&frame	MJPG 20481536/30fps;YUY2 20481536/3.75fps;MJPG 19201080/30fps;YUY2 19201080/5fps;MJPG 1280720/30fps,YUY2 1280720/10fps;MJPG 800600/30fps;YUY2 800600/20fps;MJPG/YUY2 640*480/30fps;
Hoster computer software customized	Can customized client application
Power consumption（Full resolution）	P=1W 5V*200mA
Operation temerature	0℃~60℃
Storage temerature	-40℃~85℃
supporting platform	Linux,windows,Android
Application	Education,Bank,others
Driver	No need
ESD level	USB2.0 Contact discharge 4KV,Not-contact discharge15KV

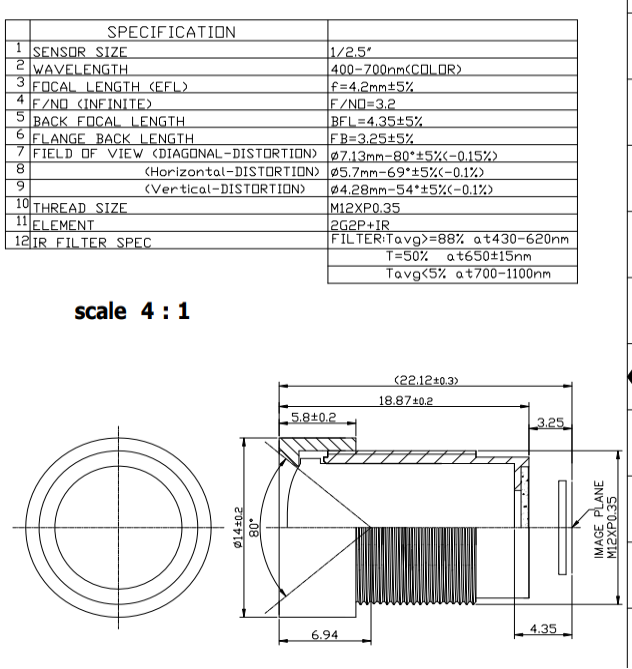

Dimension，2D drawing	38*38mm,detail dimension as 2D
ROHS	Complicate
