Professional camera manufacturing from China.
Provides Rawdata/RGB data, USB3.0 interface,
large pixel, low noise medical endoscope, industrial endoscope/RGB camera
Other: manual white balance, color automatic+manual correction.
Compatible with Windows 10/Windows 11, customizable software and hardware,
| CMOS sensor model | OV9734 |
| CMOS sensor Size | 1/9 inch |
| Output full resolution | 1280*720 |
| Pixel size | 1.4um*1.4um |
| TV Distortion | <19% |
| IR Specification | 650+_10nm |
| Field of View | Diagnal:140 degree ,Horizontal:120 degree,Vertical:72 degree |
| Output port type | Typec USB3.0 port |
| Effective full resolution&frame | MJPG 1280*720 30fps; YUY2 1280*720 10fps |
| Normal resolution&frame | MJPG 1280*720/30fps；640*480/30fps; 640*360/30fps; 320*240/30fps; YUY2 1280*720/30fps;640*480/30fps; 640*360/30fps; 352*288/30fps; 320*240/30fps; |
| Customized fomat/RGB Carmera | RGB with driver application 1280*720 30fps |
| Power consumption（Full resolution） | P=1.15W 5V*230mA |
| Operation temerature | 0℃~60℃ |
| Storage temerature | -40℃~85℃ |
| supporting platform | Linux,windows,Android |
| Application | Medical,Industry |
| Driver | No need |
| ESD level | USB3.0 port contact discharge 4KV,Not-contact discharge15KV |

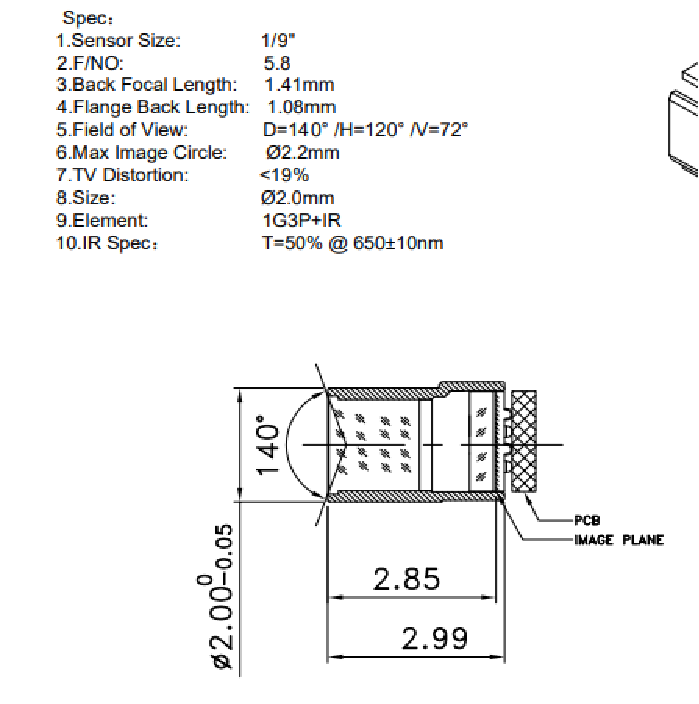

| Dimension，2D drawing | Separate main board and sensor，sensor head long:1m，main board 20.5X53.5mm,detail dimension as 2D drawing |
| ROHS | Complicate |
