Professional camera manufacturing from China.
CMOS sensor model:PS5520
CMOS sensor Size:1/2.5 inch
Output full resolution:2592*1944-color/mono
Pixel size:2.2um*2.2um
TV Distortion:<1%
IR Specification:850+_10nm&650+_10nm
Field of View:Diagnal=78.4 degree ,Horizontal=66 degree,Vertical=52 degree
Output port type:USB2.0
| CMOS sensor model | PS5520 |
| CMOS sensor Size | 1/2.5 inch |
| Output full resolution | 2592*1944-color/mono |
| Pixel size | 2.2um*2.2um |
| TV Distortion | <1% |
| IR Specification | 850+_10nm&650+_10nm |
| Field of View | Diagnal=78.4 degree ,Horizontal=66 degree,Vertical=52 degree |
| Output port type | USB2.0 |
| Effective full resolution&frame | MJPG 2592*1944 25fps |
| Normal resolution&frame | MJPG 2048*1536;1920*1080 25fps;1280*720/25fps; 800*600/25fps;640*480/25fps; |
| Power consumption | P=1.05W 5V*210mA+ P=1.05W 5V*210mA |
| Operation temerature | 0℃~50℃ |
| Storage temerature | -40℃~85℃ |
| supporting platform | Linux,windows,Android |
| Application | Face identification,others |
| Driver | No need |
| ESD level | USB2.0 port contact discharge 4KV,Not-contact discharge15KV |

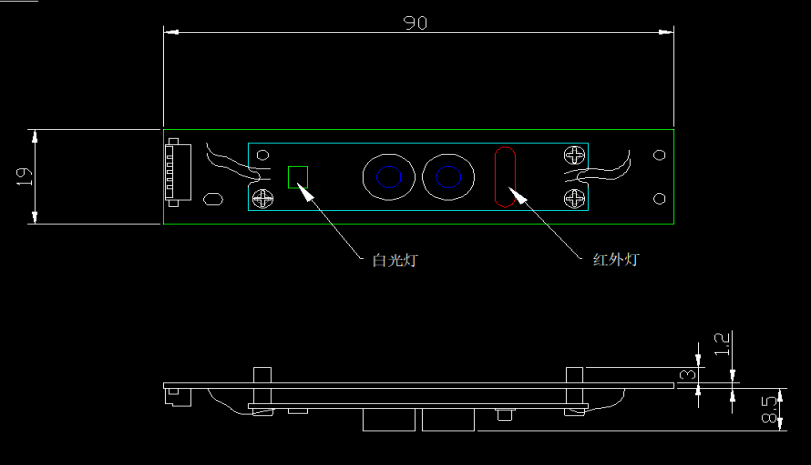

| Dimension，2D drawing | Dimension90*19*12.7mm, detail dimension as 2D drawing |
| ROHS | Complicate |
